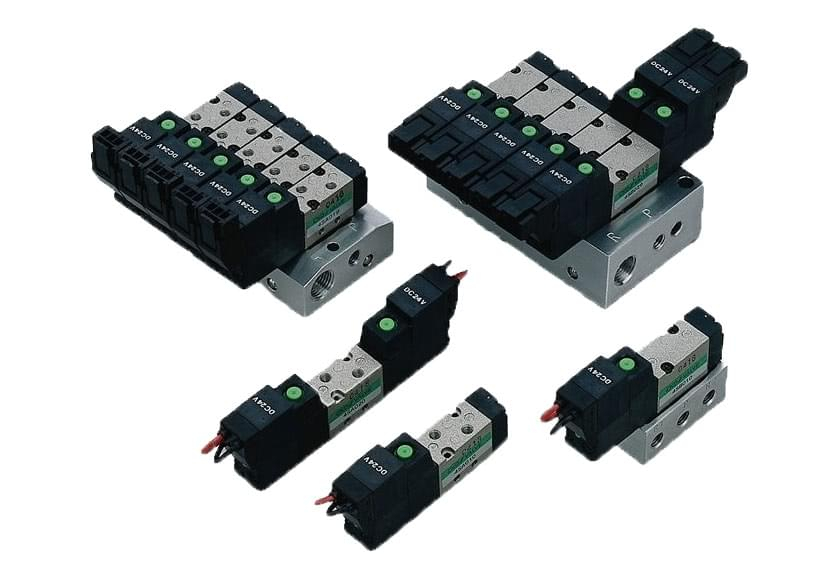

Miniature 5 port valve series 4SA0/4SB0

The 4SA0 and 4SB0 Series miniature 5 port valve contributes to space-saving and weight reduction. This series is compatible for driving cylinders up to ø25.

Contributes to space saving and weight reduction of devices.
10 mm wide, miniature 5 port valve. Aluminium and resin are adopted for main components.

Flow rate up to 110 l/min

Energy saving

Wide series variation
Single valve, individual wiring manifold and reduced wiring manifold for PLC control

Space saving
The compact design has 10 mm valve width.

Device weight reducing

Energy saving
Low wattage design (25 mA at 24 VDC). Power consumption 0.6 W

Wide variation of electric connection
The lead wire type, C/D-type connector is available in this series. Lights and surge suppressors can also be combined.

Couple with electronic control
5 VDC, 6 VDC, 12 VDC and 24 VDC voltages are available with a low-wattage design. (25mA at 24 VDC)

Resource saving
Special soft packing seal is adopted, enabling use in an oil free environment.

Compatible with lines susceptible to copper
Through ideal material selection and special surface treatment, the generation of copper ion is prevented.

Reduced wiring for PLC control
The flat cable connection and D sub-connector connections (radial, axial) are available as connection types. Reduced wiring can be applied to PLC control.
