Piab Adapters

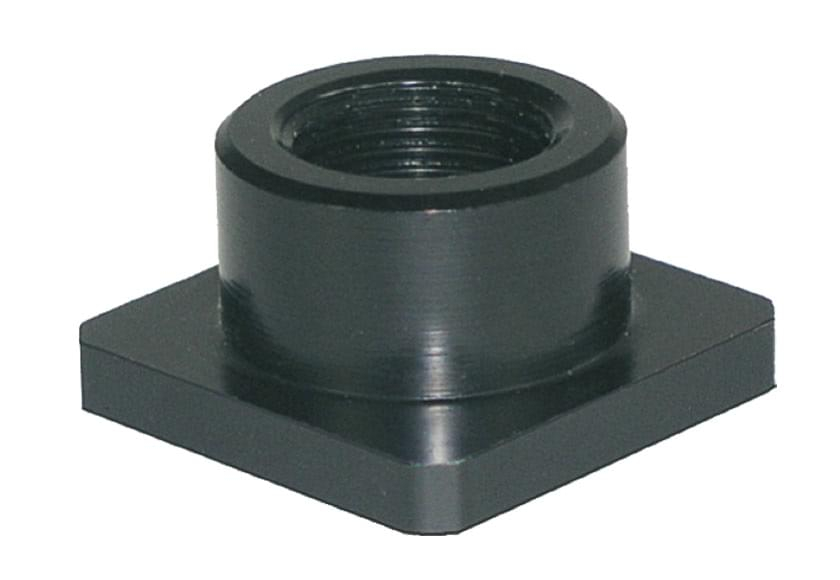

• The PIAB T-slot adapter enables PIAB suction cups to mount to existing boom assemblies and end-of-arm tooling used in the automotive industry. The T-slot adapter threads into the PIAB cup fitting and can then be mounted accordingly.
• The suction cups can be changed quickly and with great ease.
• Non-rotating feature — good when using oval suction cups.

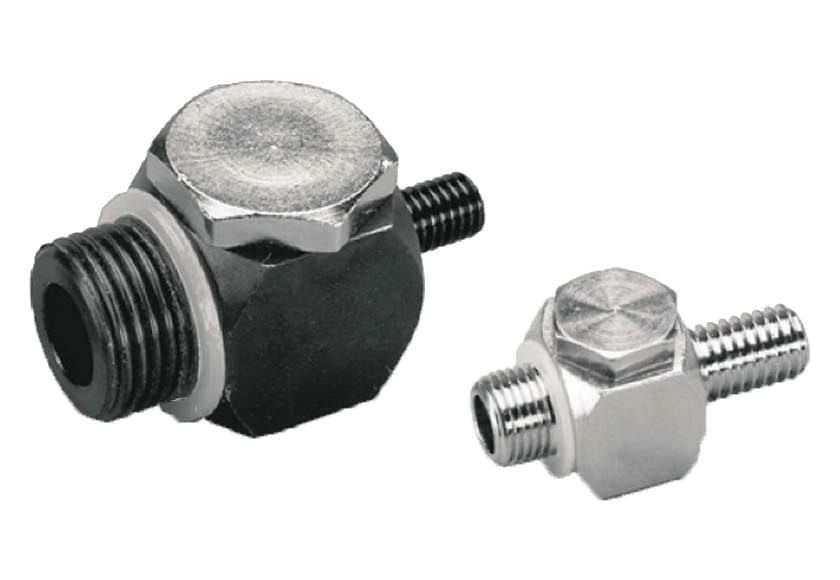

• Angle adaptors facilitate vacuum connections when space and headroom are limited.
• Can also be used as T-connectors.

G1/8" - M8

Weight: 20g
Temperature range: -40 - 110 °C
Material: CuZn/NBR/PA

G1/2" - M8

Weight: 120g
Temperature range: -40 - 110 °C
Material: SS/NBR/PA
