Piab Fittings

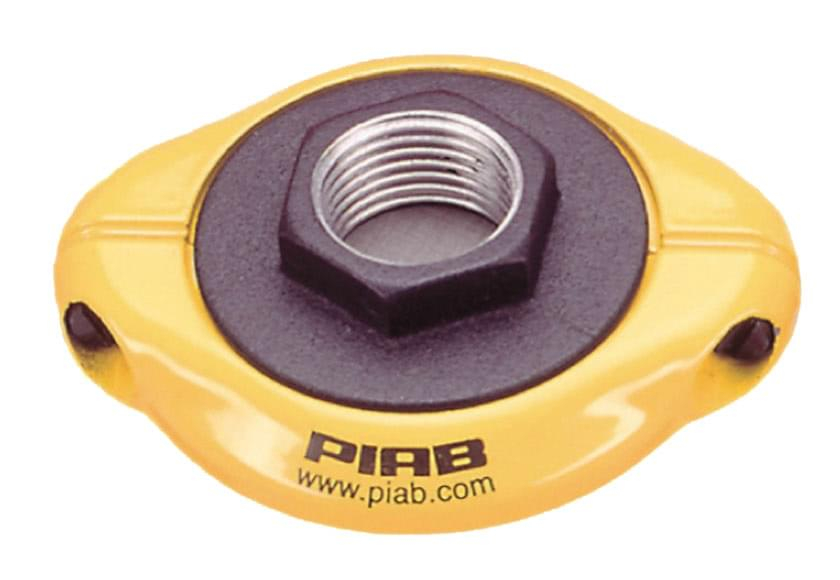

Fitting 75
- Suits suction cups: B75, B75P, B75-2, F75, F75P, FC100P
- With cone valve only for: F75

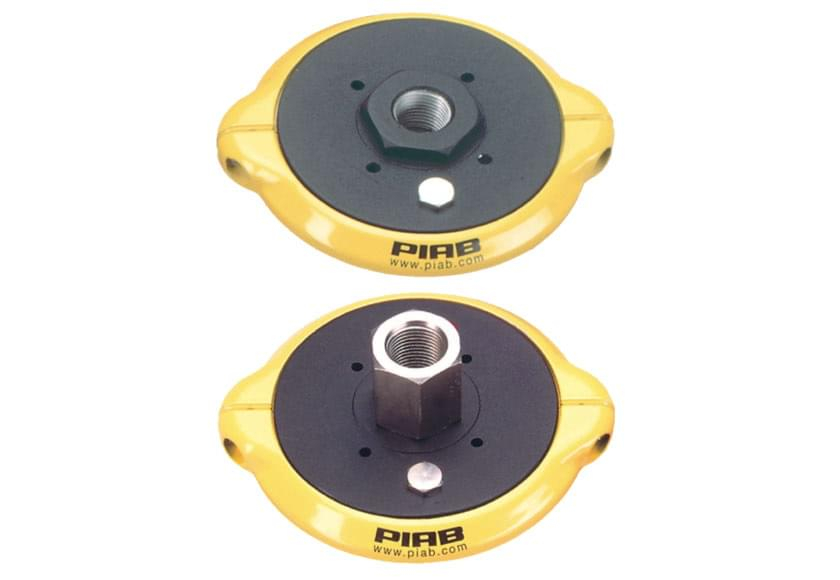

Fitting 150
- Suits suction cups: B150, F150
- With cone valve only for: F150

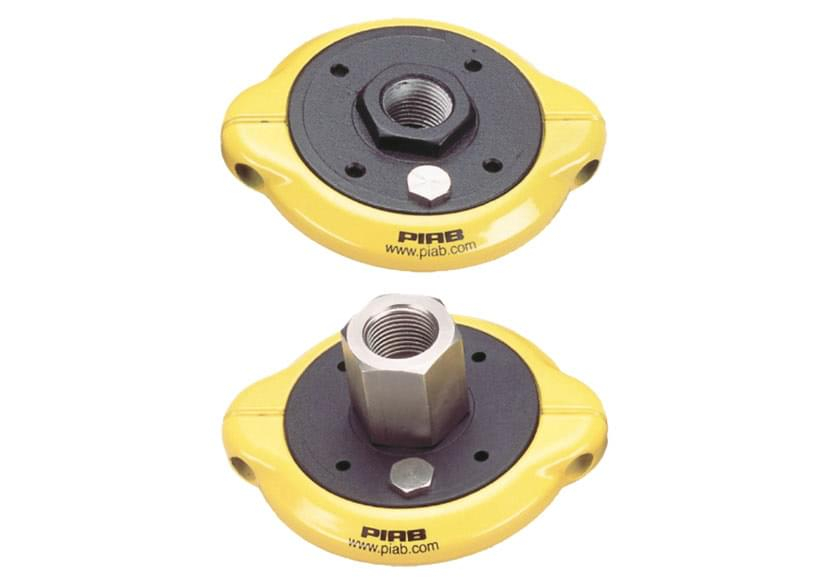

Fitting 110
- Suits suction cups: B110, B110-2, F110P, F110, FC150P
- With cone valve only for: F110
M2.5 male
- Suits suction cups: U2, U3
M5 male
- Suits suction cups: B10-2, B15-2, B15MF, D15-2, F15, F15MF, U10, U15
G1/8" male
- Suits suction cups: B20, B20MF, D20-2, F20, F20MF, U20, F25, F25MF, FC20P, FC25P, D30-2, F30-2, F30MF, U30
G1/8" male / M5 female – Composite
- Made of PA (Polyamide).
- Can be used on a number of PIAB’s suction cups in sizes from 20 to 50 mm.
- The weight of the composite fittings is approximately half the weight of corresponding fittings of aluminium.
- The fittings are durable and resistant to the most common acids and chemicals. They can be used in applications where aluminium cannot be used due to environmental issues, for example, in the chemical industry and the food industry.
- Suits suction cups: B20, BL20-2, D20-2, D30-2, F20, F25, F30-2, U20, U30
1/8" NPSF female
- Suits suction cups: B50, B50-2, BX52P, B50MF, BL50-2, D50, F50-2, F50MF, U50-2
- With cone valve only for: F50-2
- Without mesh filter for: BX52P
1/8" NPSF female – Composite
- Made of PA (Polyamide).
- Can be used on a number of PIAB’s suction cups in sizes from 20 to 50 mm.
- The weight of the composite fittings is approximately half the weight of corresponding fittings of aluminium.
- The fittings are durable and resistant to the most common acids and chemicals. They can be used in applications where aluminium cannot be used due to environmental issues, for example, in the chemical industry and the food industry.
- Suits suction cups: B50, B50-2, BL50-2, B50MF, D50, F50-2, U50-2
G1/4" male with mesh filter
- Suits suction cups: B50, B50-2, BX52P, B50MF, BL50-2, D50, F50-2, F50MF, U50-2
1/2" NPT male
- Suits suction cup: BL50-3P
G3/8" male with mesh filter
- Suits suction cups: B50, B50-2, B50MF, BL50-2, D50, F50-2, F50MF, U50-2
3/8" NPT male
- Suits suction cup: BL30-3P, BL40-3P
5x1/8" NPSF female
- Suits suction cups: B30-2, B30MF, BL30-2, B40, B40MF, BX35P, BL40-2, F40-2, F40MF, U40-2, FC35P
M5 male
- Suits suction cups: B5, B8, U4, U6, U8
M5 female
- Suits suction cups: B20, B20MF, BL20-2, D20-2, F20, F20MF, U20, F25, F25MF, FC20P, FC25P, D30-2, F30-2, F30MF, U30
G1/8" male / M5 female
1/8" NPSF female
- Suits suction cups: B30-2, B30MF, BL30-2, B40, B40MF, BL40-2, F40-2, F40MF, U40-2, FC35P
- With cone valve only for: F40-2
- Without mesh filter for: BX35P
1/8" NPSF female – Composite
- Made of PA (Polyamide).
- Can be used on a number of PIAB’s suction cups in sizes from 20 to 50 mm.
- The weight of the composite fittings is approximately half the weight of corresponding fittings of aluminium.
- The fittings are durable and resistant to the most common acids and chemicals. They can be used in applications where aluminium cannot be used due to environmental issues, for example, in the chemical industry and the food industry.
- Suits suction cups: B30-2, B40, BL30-2, BL40-2, F40-2, U40-2
G1/4" male with mesh filter
- Suits suction cups: B30-2, B30MF, BL30-2, B40, B40MF, BX35P, BL40-2, F40-2, F40MF, U40-2, FC35P
G1/2" male
- Suits suction cup: BL50-3P
G3/8" male with mesh filter
- Suits suction cups: B30-2, B30MF, BL30-2, B40, B40MF, BX35P, BL40-2, F40-2, F40MF, U40-2, FC35P
G3/8" male
- Suits suction cup: BL30-3P, BL40-3P
5xM5 female
- Suits suction cups: B20, B20MF, BL20-2, D20-2, F20, F20MF, U20, F25, F25MF, FC20P, FC25P, D30-2, F30-2, F30MF, U30
5x1/8" NPSF female
- Suits suction cups: B50, B50-2, BX52P, B50MF, BL50-2, D50, F50-2, F50MF, U50-2
