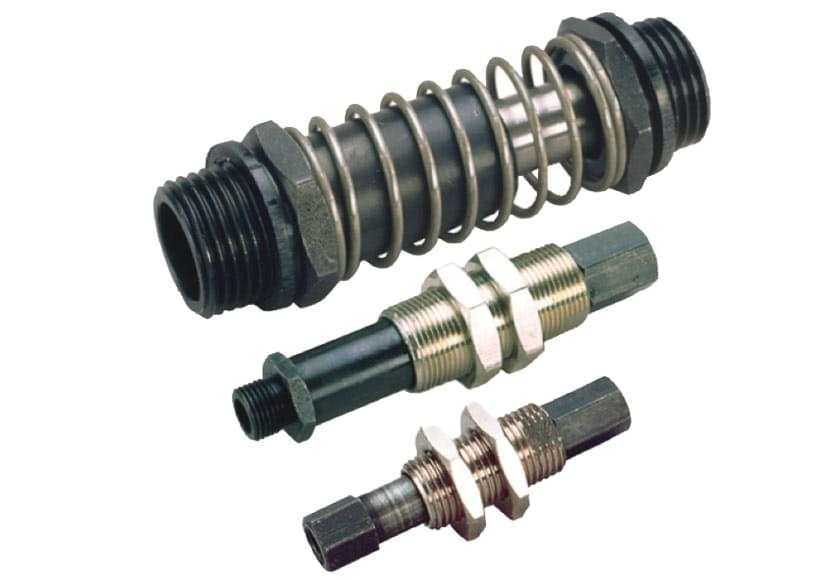

Level Compensators

Piab Level compensator LC30 EOAT

Easy installation with the option of fine adjustments and positioning of the suction cup.
Conical spring means very low total height in relation to stroke. For example, that can help increase cycle speed in sheet metal press-to-press stamping applications.
Non-rotational for use with, for example, oval suction cups. Can easily be made rotational.
Mounting interfaces for standard flexible end-of-arm-tooling (EOAT) systems. • Developed for use with decentralized vacuum pump/generator units such as VGS™3010 and VGS™3040 or a centralized vacuum pump/generator.
Quiet and reliable level compensation with load protection and shock absorption.

Tailor made for the Vacuum Gripper System, VGS™, but can also be used together with other PIAB products.
Developed for use with standard profile systems.
Easy installation with the option of fine adjustments and positioning of the suction cup.
Non-rotational for use with, for example, oval suction cups. Can easily be made rotational.
Quiet and reliable level compensation with load protection and shock absorbtion.

Adjust differences in levels, for example on lifting devices with several suction cups on a frame.
A level compensator is often advantageous since it places less demand on exact vertical positioning, for example on a handling robot.
The level compensator provides a certain degree of shock absorbtion.
Level Compensator G1/2" with stiffer spring is identical to standard level compensator G1/2" except for thicker spring material. Suits e.g. robot vision systems in applications such as auto-racking.
